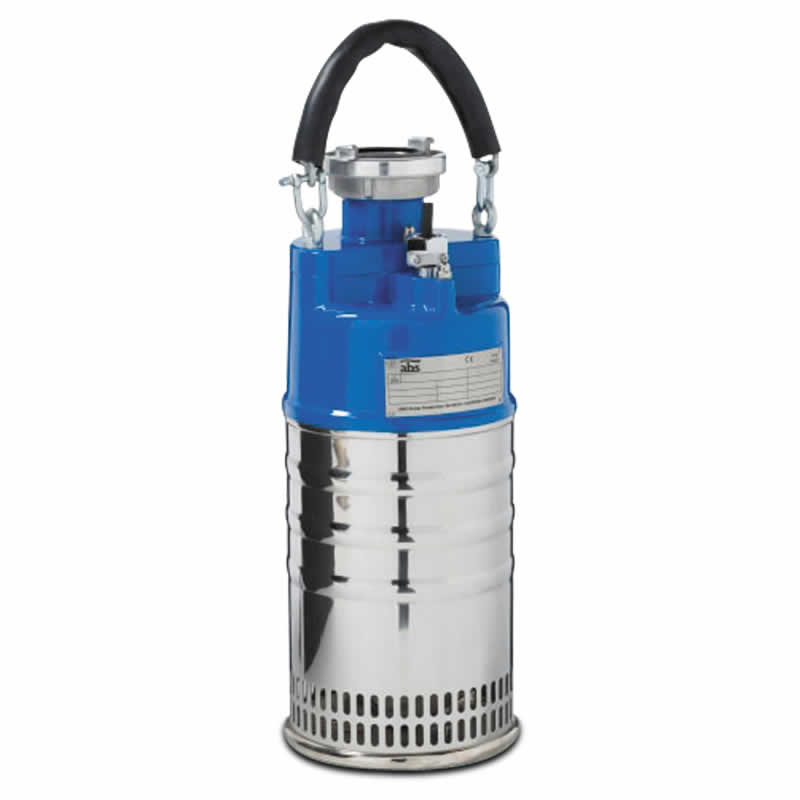

PC1001 & PC1501 Submersible Drainer Pump

The new range of Sykes drainer submersible pumps are ideal for dewatering at all kinds of construction sites  from the smallest building project right up to the biggest civil engineering contracts such as dams, bridges, construction, quarrying, tunneling and open cast mining. Their easy handling and excellent capacity make them ideal for ship yards, salvage brigades and many other industries and applications.

Key Features

Feature

Feature

Stainless steel components

High wear resistance

Can run dry

Easy portability

Built in motor

protection

High head and

high volume versions

Highly reliable

No vibration –

smooth running

Standardised deisgn for

simple service and maintenance

Simple installation

Product Specification

  • Model : PC1001 N Medium Head / PC1001 N High HeadPC 1501 N Medium Head
  • Motor Type : 415V (3-Phase) 415 V (3-Phase)
  • Motor Rating : 2.2 kW 4.2 kW
  • Max power input : 3.0 kW 5.0 kW
  • Running current : 5.5 Amps 8.7 Amps
  • Discharge Spigot : 540 x 230 mm
  • Dimensions (H x W) : BSP 3” or Bauer 567 x 296 mm
  • Weight (excl cable) : 27 kg 36 kg
  • Generator : Min 10 kva / Rec 15 kva Min 15 kva Rec 20 kva

Environments

  • Building site drainage
  • General dewatering
  • Effluent control
  • Clean and dirty water pumping
  • Tunnelling
  • Nuisance water – stormwater
  • Quarrying
  • Mining
