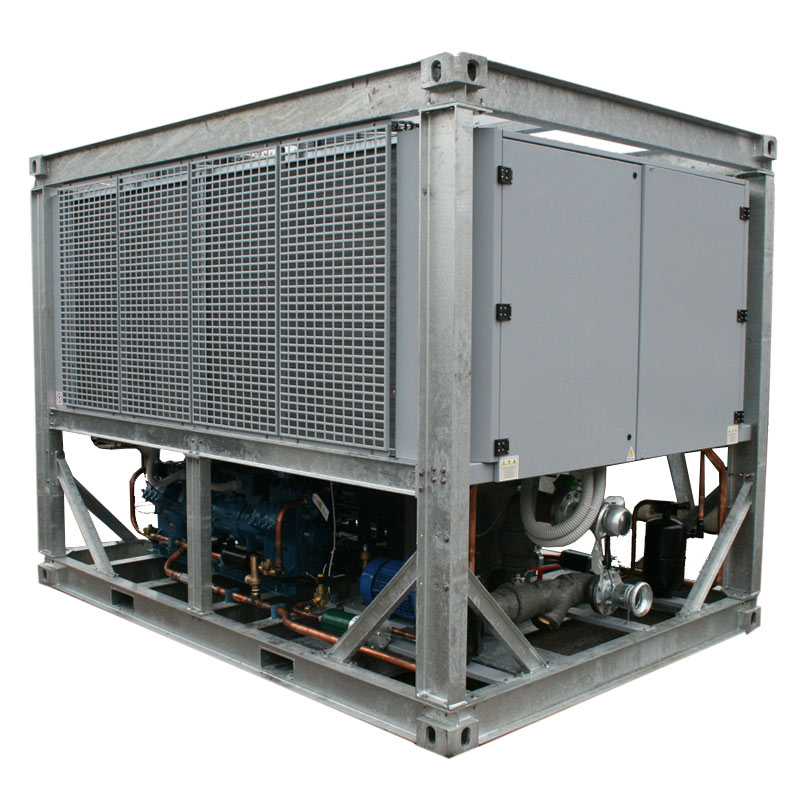

500kW Fluid Chiller

The 500 kW fluid chiller is a highly efficient, and exceptionally strong chiller and can be used for a multitude of applications where large volumes of cooling is needed. It’s quiet in operation and environmentally friendly, as are all Andrews chillers. The 500 kW chiller is compatible with all Andrews air handling units and accessories.

Key Features

Feature

For cooling large

areas

Quiet operation

Quick release pipe

adaptors

Economical

Easy installation

Environmentally friendly

Connects to existing

pipe work easily

Product Specification

Average power consumption :160 kW/hr
Generator size :400 kVA dependent on system resistance
Noise level (max) :82 dBA @ 10 metres
Plug type :Hard wired
Power supply :415 V 3 ph +E 50 Hz Run 320 A/hr
Nominal cooling duty :500 kW 1,876,600 btu
Weight :4,200 kg
Dimension :3,491 x 2,438 x 2,590 mm

Downloads

Environments

Air conditioning
Product storage
Process cooling
Low temperature applications
Temperature control
Disaster recovery
Scheduled chiller maintenance
Events and corporate hospitality
