Immediate Despatch

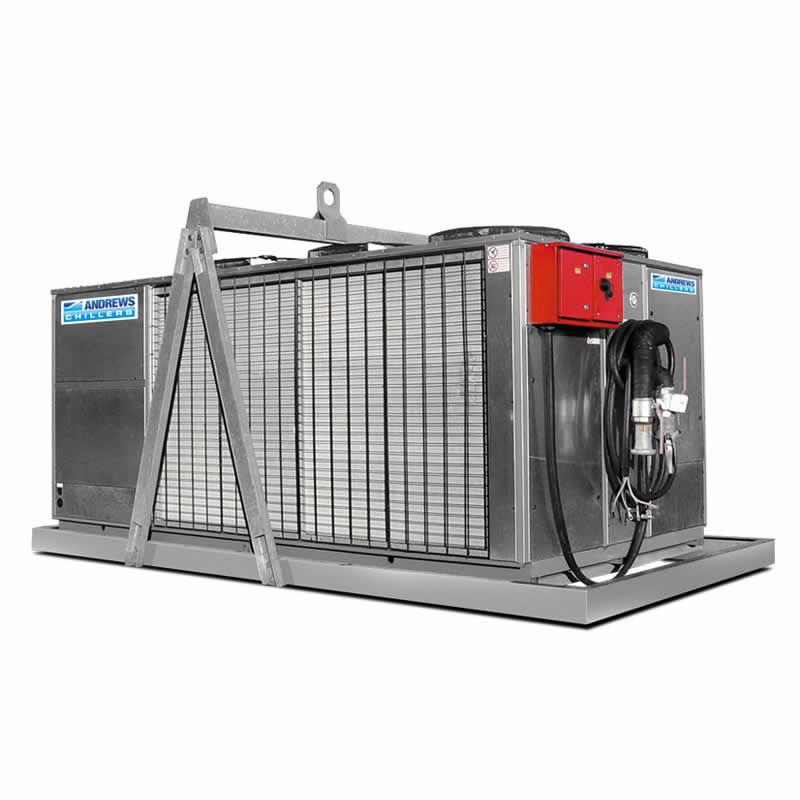

200kW Fluid Chiller

The 200kW fluid chiller is a robust powerful and easley portable fluid chiller. This highly efficient chiller and can be used for a multitude of applications in all industry sectors. Its quiet in operation and environmentally friendly – as are all Andrews Chillers. Also available with heat pump option, for all year round use. The 200kW chiller is compatible with all Andrews air handling units and fan coils.

Key Features

Feature

Connects to existing

pipe work easily

Quiet operation

For cooling large

areas

Quick release pipe

adaptors

Economical

Easy installation

Environmentally friendly

Product Specification

Noise level (max) :53.3 dBA @ 10 metres
Plug type :Hard wired
Average power consumption :63.2 kW/hr
Generator size :140 kVA
Water connection :3 Bauer
Power supply :415 V 3 ph +E 50hz Run 120 A/hr
Nominal heating duty (HP version) :200 kW 682,400 btu
Nominal cooling duty :200 kW 682,400 btu
Weight :3,500 kg
Dimension :4,550 x 2,300 x 2,900 mm
Control :Automatic programmer

Downloads

Environments

Air conditioning
Product storage
Process cooling
Low temperature applications
Temperature control
Disaster recovery
Scheduled chiller maintenance
Events and corporate hospitality
