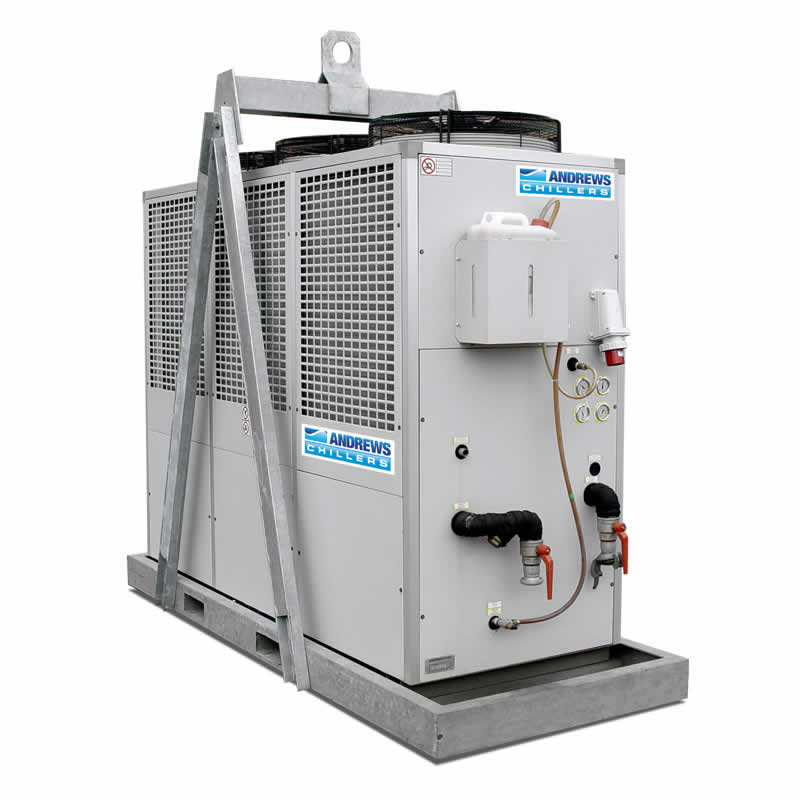

100kW fluid chiller

The 100kW fluid chiller is a robust powerful and easley portable fluid chiller. This highly efficient chiller and can be used for a multitude of applications where large volumes of cooled air are needed. Its quiet in operation and environmentally friendly – as are all Andrews Chillers. Also available with a Heat pump option, for all year round use. The 100 kW chiller is compatible with all Andrews air handling units and fan coils.

Key Features

Feature

Environmentally friendly

Quiet operation

Quick release pipe

adaptors

Economical

Easy installation

For cooling large

areas

Connects to existing

pipe work easily

Product Specification

Water connection :2 Bauer
Generator size :75 kVA
Average power consumption :31.6 kW/hr
Power supply :415 V 3ph +E 50 Hz Run 70 A/hr
Plug type :BS4343 63 A 5 pin
Noise level (max) :58.5 dBA @ 10 metres
Nominal heating duty (HP version) :100 kW 341,200 btu
Nominal cooling duty :100 kW 341,200 btu
Weight :1,790 kg
Dimension :3,100 x 1,330 x 2,775 mm
Control :Automatic programmer

Downloads

Environments

Air conditioning
Product storage
Process cooling
Low temperature applications
Temperature control
Disaster recovery
Scheduled chiller maintenance
Events and corporate hospitality
