Immediate Despatch

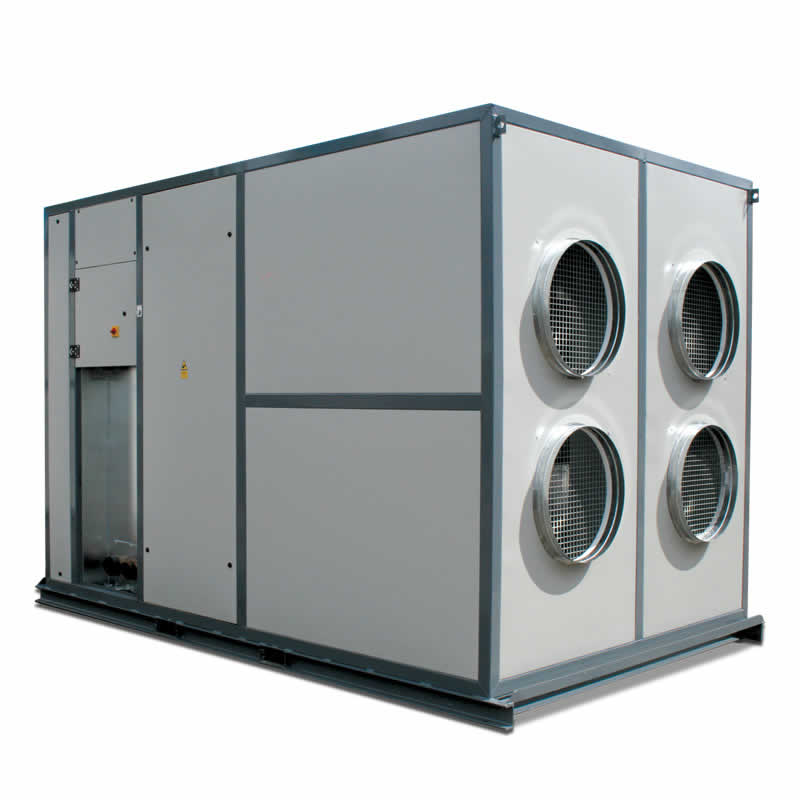

300/600kW Boiler Air Handler

300 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with an internal condensate pump. A full range of ancillaries are available, including insulated flexible duct, plenum chambers, extraction fans and condensate hose.

Key Features

Feature

Safe and easy

to use

Economical

Fully portable

Very reliable

Robust construction

Quiet operation

Fully automatic operation

Product Specification

Power supply :415 V 3 ph 50 Hz N+E Run 30 A/hr
Noise level (max) :81 dBA @ 5 metres
Plug type :BS4343 5 Pin 32 A
Duct length (max) :50 metres
Duct size :4 x 600 mm
Nominal cooling capacity :300 kW 1,023,600 btu
Nominal heating capacity :600 kW 2.047,200 btu
Integral thermostat :No
Integral condensate pump :Yes
Fan speed controller :No
Weight :2,150 kg
Dimension :3,780 x 2,340 x 2,590 mm

Downloads

Environments

Food preparation areas
Shops
Cold storage facilities
Marquees
Offices
Events and Exhibitions
Computer rooms
Archives
Temporary accommodation
